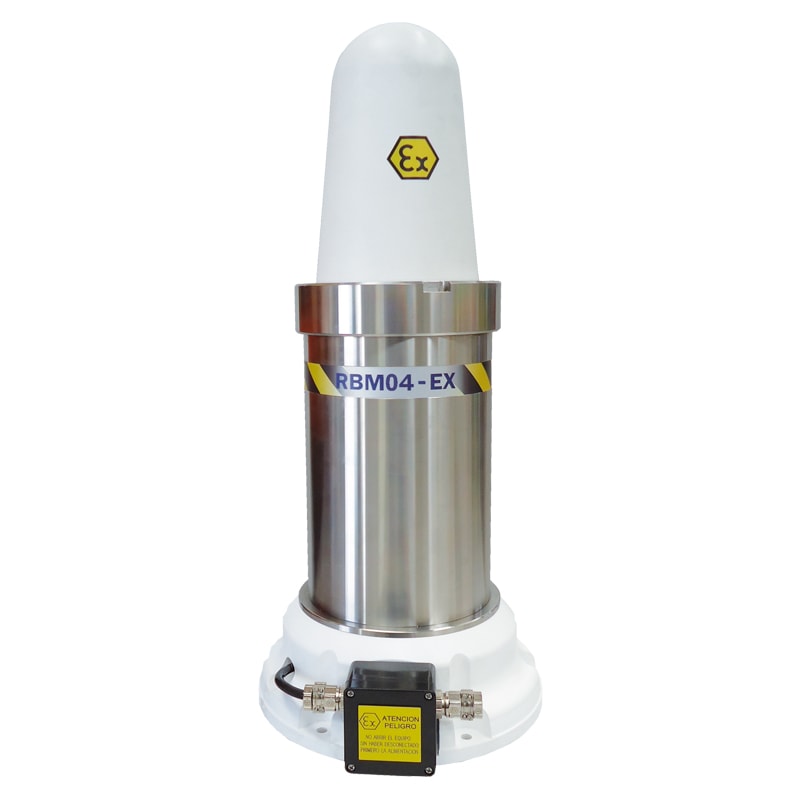

RBM04-Ex

Racon

The RBM04 Explosion Proof is a latest-generation (frequency-agile) Radar Beacon, which works in the marine X and S radar bands, with ATEX Classification to be installed in hazardous areas, such as offshore platforms.

The RBM04-Ex benefits from the latest electronic technologies applied to AtoN radar systems, such as field programmable arrays and programmable timers.

The Racon actively answers all active radars in the vicinity with a user programmed Morse code which identifies its location by appearing on the radar display.

Designed according to IALA Recommendation and IMO Standards.

II 2G Ex db eb IIB T6 Gb.

Technical specifications

Classification

GROUP II: Equipment on surface (no mining)
ZONE 1: Category 2
ATMOSPHERE: GAS

Response

On X and S bands

Advanced Side-Lobe Suppression system (SLS)

To better discriminate the genuine pulses to be responded

The length of the Morse code response

Matches the display range setting by programming the duration of the answer according to the pulse length before installation

Transmitter power

1W in both bands

Configurable receptor sensitivity
RS-232 communication serial port
Configuration via PC
Wide power supply range
Low power consumption
Maintenance free
